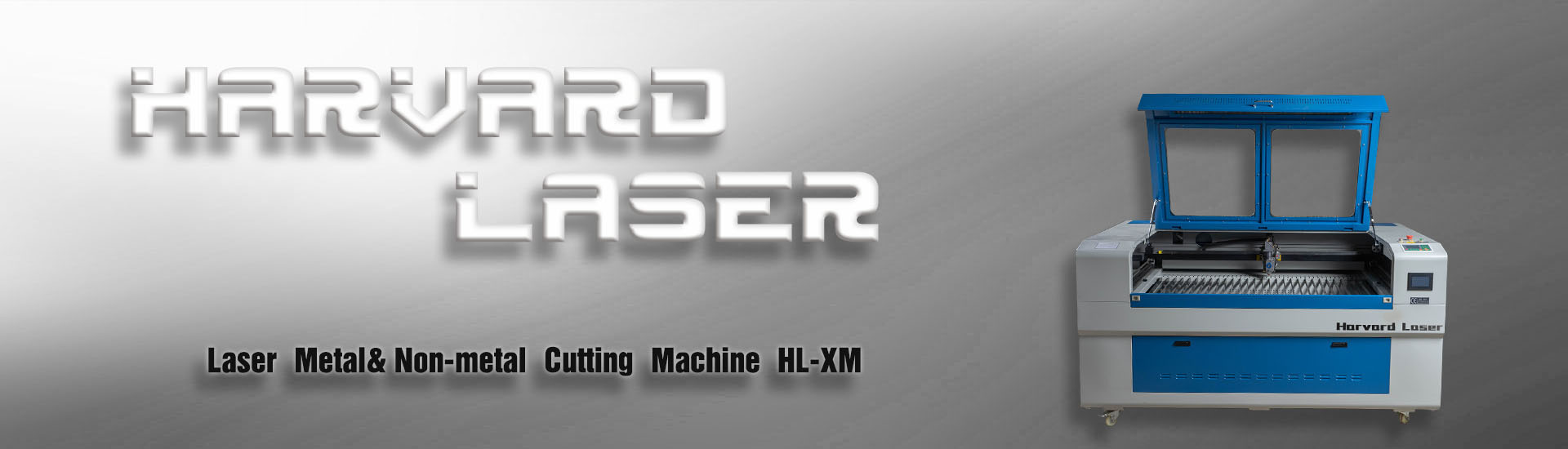

1.150W CO2 laser cuts multiple materials including metal and non-metal;
2.Maximum cutting thickness for carbon/stainless steel is 1.2mm (steel only, other metals you need consider fiber lasers);
3.Maximum cutting thickness for acrylic and plastic is 25mm (1 inch), and for wood is 3/4 inch;
4.Capacitive Auto-height adjusting cutting head;
5.Programmable cutting assist gas solenoid;
6.Highly efficient sealed CO2 tube with 10,000 hours MTBF.
Product advantages
Metal and nonmetal cutting laser head
Can cut metal and nonmetal material.
Focus automatically
RD control system
Simple system
Good flexibility
Safe and stable operation
RECI laser tube
The product is featured for working under large power rate and long service time, high efficiency,narrow mark line,deep scale, high resolution.
Stepper motor
Low Noise
Low Vibration
Smooth Operation
High Torque
Higher Acceleration Ability
Better Precision
Better Acceleration Performance
3 Phase NEMA 42 stepper Motor
ermany Linear Guide Rail
Adopted Germany BOBO linear guide rail, high positioning accuracy, scroll guide, reduce wear to maintain accuracy for a longer time.
WIFI Control
Convenient- Engineers can remotely control computers and machines, adjust parameters and solve problems.
Efficiency- One PC can control several machines.
Technical Parameters
Model
HL1309XM
OPTION
Working Area
1220*900mm
According to Demands
Laser Power
150W
Laser Type
CO2 Sealed Laser Tube, 10.6μm
Cooling Type
Water Cooling
Laser Output Control
((0-100% Set by Software )
Highest Scanning Precision
4000DPI
Positioning Accuracy
0.05mm
Positioning Speed
20mm/min
Max.Cutting Thickness
40mm
Max.Cutting Speed
20m/min
Power Supply
AC110V/220V+10%,50HZ/60HZ
